Cutter parts
Corn Cutter parts suitable for all major brands.Parts book
Parts
| # | Picture | Partnumber | Description | Quantity |
|---|---|---|---|---|
| 1 |
|
0372070B | JOINT, UNIVERSAL DTL |  |
| 2 |
|
0372072B | SHAFT,QUILL PER PRINT | |
| 3 |
|
0372196B | BUSHING,SPACER | |
| 4 |
|
11159 | GRINDING WHEEL 10 DEGREE | |
| 5 |
|
11301 | SWITCH, MAGNETIC SAFETY | |
| 6 |
|
11559 | SSS NYLON TIP 8-32 X 1/4 | |
| 7 |
|
11559 | SSS NYLON TIP 8-32 X 1/4 | |
| 8 |
|
11710 | BRONZE WASHER | |
| 9 |
|
1183058 | COLLAR SET 9/16 BORE | |
| 10 |
|
1360 | PIN, LOCATING, CUTTER HEAD | |
| 11 |
|
1424 | CUTTER SHAFT BEARING MOD 2 | |
| 12 |
|
1426 | CUTTER SHAFT BEARING MOD 2 | |
| 13 |
|
1431 | SHAFT, CUTTER HEAD MOD 2 | |
| 14 |
|
1609 | SHAFT, COB ROLL | |
| 15 |
|
1612 | LEVER, CENTERING, UPPER JS 84 | |
| 16 |
|
1613 | LEVER, CENTERING, LOWER JS 85 | |
| 17 |
|
1614 | SPRING, FEED ROLL HEAVY JS 369 | |
| 18 |
|
1619 | LEVER, PIVOT JS43 | |
| 19 |
|
1620 | SLIDE, FEED ROLL | |
| 20 |
|
1623 | U-JOINT ASSEMBLY | |
| 21 |
|
1626 | SHAFT, FEED ROLL DRIVE STUB | |
| 22 |
|
1628 | SPRING, FEED ROLL LIGHT JS 370 | |
| 23 |
|
1657 | MOUNT SENSOR BRACKET | |
| 24 |
|

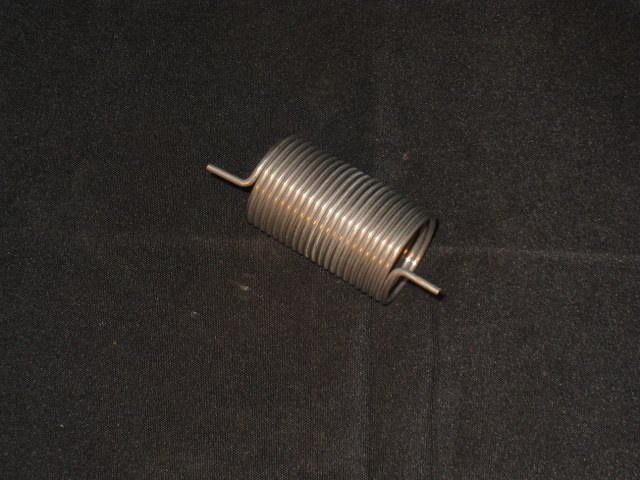

1659 | TORSION SPRING | |
| 25 |
|
1663 | CAM FOLLOWER | |
| 26 |
|
1664 | GUAGE, ACTUATOR | |
| 27 |
|
1667 | SEAL, GARLOCK | |
| 28 |
|
1668 | SEAL, GARLOCK | |
| 29 |
|
1669 | BALL BEARING | |
| 30 |
|
1675 | COLLAR, TORSION SPRING | |
| 31 |
|
1680 | SHIM WASHER | |

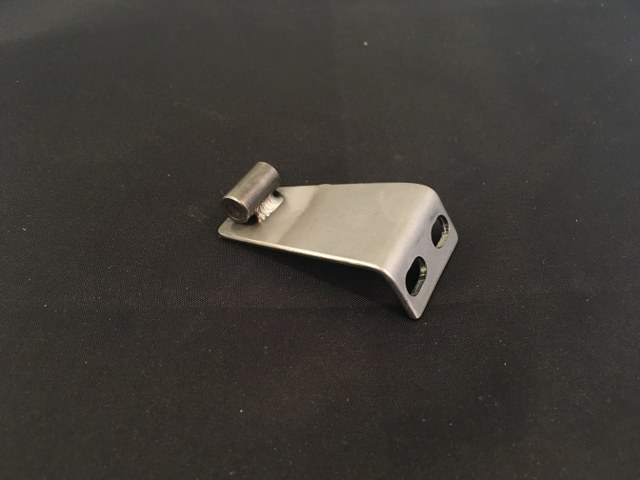

| 32 |
|
1681 | EAR OUT SENSOR MAGNET BRACKET | |
| 33 |
|
1686 | COVER, U-JOINT | |
| 34 |
|
1691 | NUT,BEARING | |
| 35 |
|
1785 | SPREADER BLOCK | |
| 36 |
|
1788 | CYLINDER, ARM ASS'Y | |
| 37 |
|
1791 | PLUNGER ASS'Y NUBBIN KNOCKER | |
| 38 |
|
1798 | CAM, NUBBIN KNOCKER | |
| 39 |
|

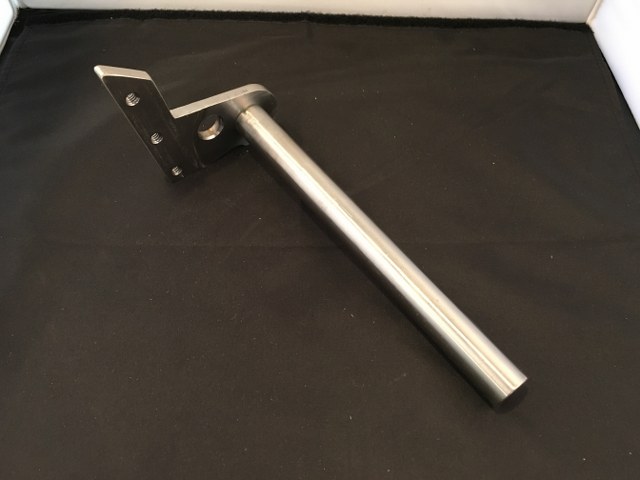

1800 | HOUSING ASS'Y, CAM SHAFT | |
| 40 |
|
1803 | CAM SHAFT SUB ASSEMBLY | |
| 41 |
|
1817 | HOUSING WELDMENT | |
| 42 |
|
1826 | U-JOINT, COB SHAFT | |
| 43 |
|
1827 | BLOCK, COB OUT SHAFT BEARING | |
| 44 |
|
1828 | BLOCK, COB IN SAHFT BEARING | |
| 45 |
|
1831 | SLIDE, FEED ROLL | |
| 46 |
|
1835 | KEY 1/4 X 1 | |
| 47 |
|
1838 | GEAR HOLDER MOD 2 | |
| 48 |
|
1848 | FEED ROLL | |
| 49 |
|
1879 | COB ROLL WITH REPLACEABLE PINS | |
| 50 |
|
2074509 | SHAFT DRIVE | |
| 51 |
|
2074649 | SHAFT CENTERING ARMS | |
| 52 |
|
2074663 | SHAFT, FEED ROLL | |
| 53 |
|
2074665 | COB ROLL | |
| 54 |
|
2074779 | BEARING, INSERT | |
| 55 |
|
2074857B | FEED ROLL (BLACK) | |
| 56 |
|
2076024 | CHAIN, FEED TROUGH | |
| 57 |
|
2076034 | DRIVE SHAFT FEED THROUGH | |
| 58 |
|
2076035 | SHAFT TROUGH DRIVE | |
| 59 |
|
2076036 | IDLER FEED TROUGH | |
| 60 |
|
2076040 | ROLLER FRONT COVER | |
| 61 |
|
2076041 | SPACER COVER | |
| 62 |
|
2076043 | BEARING FLANGE | |
| 63 |
|
2076057 | SHAFT AND HUB ASSY | |
| 64 |
|
2076060 | FMC ACT GEAR | |
| 65 |
|
2076061 | EXTERNAL SHAFT | |
| 66 |
|
2076064 | PIN DRIVE GEAR | |
| 67 |
|
2076065 | SHAFT EXTERNAL HEAD DRIVE | |
| 68 |
|
2076071 | FMC DRIVE GEAR | |
| 69 |
|
2076073 | SPACER FRONT | |
| 70 |
|
2076081 | ROD GAUGING LEVER | |
| 71 |
|
2076082 | ROD GAUGING LEVER | |
| 72 |
|
2076083 | SHAFT KNIFE ADJ | |
| 73 |
|
2076089 | TUBE - SPRING | |
| 74 |
|
2076093 | MOUNT GAUGING ROLLERS | |
| 75 |
|
2076094 | BRKT. GAUGING ROLLERS | |
| 76 |
|
2076095 | CAM ACTUATING | |
| 77 |
|
2076098 | CAM FOLLOWER | |
| 78 |
|
2076105 | HUB FRONT HOUSING BEARING | |
| 79 |
|
2076107 | BEARING FEED ROLL | |
| 80 |
|
2076109 | BEARING FEED ROLL COB ROLL | |
| 81 |
|
2076110 | SHIELD FEED ROLL SHAFT | |
| 82 |
|
2076112 | SHIELD FEED ROLL SHAFT | |
| 83 |
|
2076113 | CLAMP CUTTER HEAD | |
| 84 |
|
2076114 | SHIELD FEED ROLL SHAFT | |
| 85 |
|
2076117 | HANDLE, FEED ROLL RELEASE | |
| 86 |
|
2076118 | FEED ROLL LIFT | |
| 87 |
|
2076119 | UPPER CTR LEVER 1ST | |
| 88 |
|
2076120 | TOOTH CENTERING LEVERS | |
| 89 |
|
2076121 | LEVER LOWER CENTERING SIDES | |
| 90 |
|
2076122 | LEVER CTR LOWER | |
| 91 |
|
2076123 | UPPER CTR LEVER | |
| 92 |
|
2076146 | BRACKET BELT IDLER | |
| 93 |
|
2076148 | COVER, U-JOINT | |
| 94 |
|
2076149 | LEVER - CENTERING | |
| 95 |
|
2076151 | FAFNIR IDLER | |
| 96 |
|
2076153 | SPRING BELT IDLER | |
| 97 |
|
2076155 | SHAFT TROUGH DRIVE | |
| 98 |
|
2076157 | BEARING FEED ROLL | |
| 99 |
|
2076171 | PULLEY | |
| 100 |
|
2076172 | SHEAVE | |
| 101 |
|
2076175 | SPACER | |
| 102 |
|
2076211 | BUSHING - TAPERLOCK 1.125 BORE | |
| 103 |
|
2076212 | U-JOINT | |
| 104 |
|
2076262 | BUSHED FHP PULLEY | |
| 105 |
|
2076340 | PULLEY CUTTER HEAD | |
| 106 |
|
2076379 | SHIM | |
| 107 |
|
2120012 | BEARING BRZ SLV .625 ID | |
| 108 |
|
2120013 | BEARING-BRZ SLEEVE | |
| 109 |
|
2120139 | BEARING BRZ SLV .500 ID | |
| 110 |
|
2120215 | BEARING, BRONZE | |
| 111 |
|
2120496 | BEARING, 1 | |
| 112 |
|
2120499 | BEARING | |
| 113 |
|
2121027 | BEARING CONE | |
| 114 |
|
2121028 | BEARING CUP | |
| 115 |
|
2121265 | BF5 ROD END | |
| 116 |
|
2122135 | V-BELT 37.3 PITCH LG TYPE A | |
| 117 |
|
2122150 | V-BELT 39.3 PITCH | |
| 118 |
|
2122153 | AX56 V-BELT | |
| 119 |
|
2127071 | BELT 320 GRIT | |
| 120 |
|
2127072 | BELT 600 GRIT | |
| 121 |
|
2216 | VALVE, HYDRAULIC ON/OFF | |
| 122 |
|
2217 | VALVE, HYDRAULIC DIRECTIONAL | |
| 123 |
|
2219 | JUNCTION STRIP SUB ASSY | |
| 124 |
|
2694 | ROD, CHUTE ADJUSTMENT | |
| 125 |
|
2767 | SHAFT, ROLLER BELT | |
| 126 |
|
2790 | BRACKET, PRESSURE ARM | |
| 127 |
|
2801 | PULLEY, BELT | |
| 128 |
|
2802 | SPACER, FEED THROUGH | |
| 129 |
|
2804 | PULLEY, BELT DRIVE | |
| 130 |
|
2809 | BELT, LFT (ORANGE) | |
| 131 |
|
2841 | NOSE WHEEL SUB ASSEMBLY | |
| 132 |
|
3101 | BELT, UFT (ORANGE) | |
| 133 |
|
3704 | COVER, BULB | |
| 134 |
|
3709 | LUCITE LENS COVER | |
| 135 |
|
3711 | O RING | |
| 136 |
|

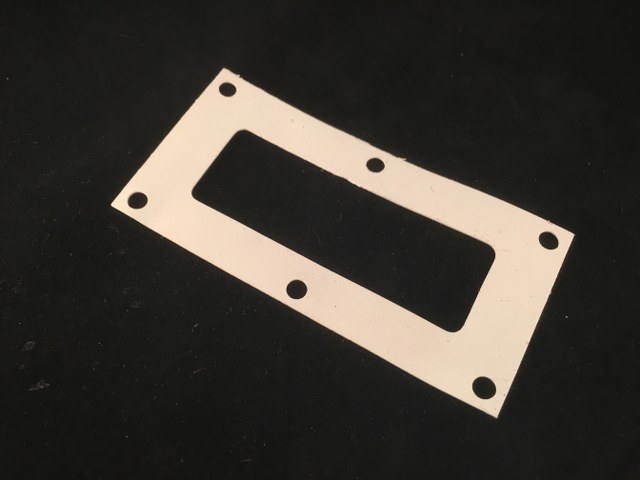

3712 | GASKET, LENS COVER | |
| 137 |
|

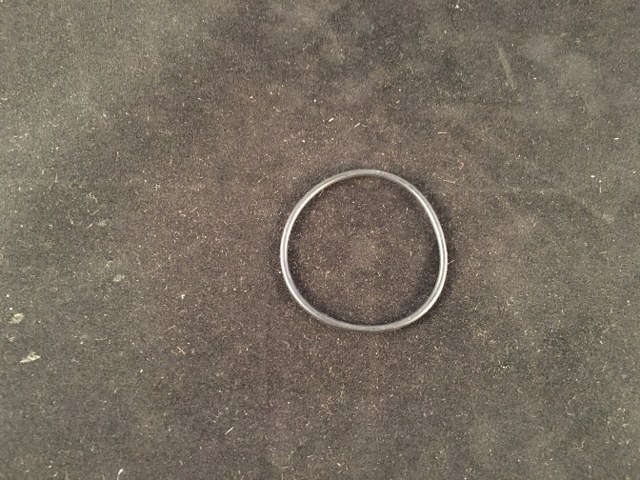

3713 | O RING | |
| 138 |
|
3714 | GE 1493 BULB | |
| 139 |
|
3727 | SOCKET, CABLE ASSY | |
| 140 |
|
4010 | CHAIN, TRACK (GREY) | |
| 141 |
|
4035 | ROD, EAR EQUALIZER ACTUATOR | |
| 142 |
|
4090 | BEARING, BALL | |
| 143 |
|
4111 | HUB, TURNWHEEL | |

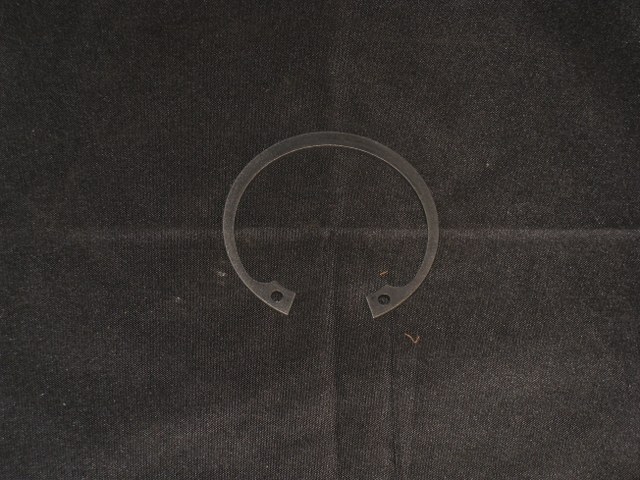

| 144 |
|
412168 | RETAINING RING | |
| 145 |
|
4175 | BRKT. CUTTER SPEED | |
| 146 |
|
4216 | TOGGLE CLAMP STAINLESS | |
| 147 |
|
4276 | KEY, CUTTER MOTOR | |
| 148 |
|
4350 | BELT PULLEY | |
| 149 |
|
4364 | MANIFOLD, INFEED WHEEL | |
| 150 |
|
450103 | BUSHING, 2ND FLIPPER | |
| 151 |
|
450105 | O-RING, SECOND VISION | |
| 152 |
|
4800168 | KEY SQ. 1/4 X 1 | |
| 153 |
|
4800351 | ALLOY STEEL WOODRUFF KEY | |
| 154 |
|
4800354 | KEY, WOODRUFF | |
| 155 |
|
4800359 | KEY, WOODRUFF | |
| 156 |
|
4801594 | OIL SEAL | |
| 157 |
|
4801595 | OIL SEAL | |
| 158 |
|
4801596 | CR SEAL | |
| 159 |
|
4801609 | 1/4 X 1/8 MALE CONN | |
| 160 |
|
4801611 | 1/4 X 1/8 MALE ELBOW | |
| 161 |
|
4801735 | NIPPLE PIPE 1/2 | |
| 162 |
|

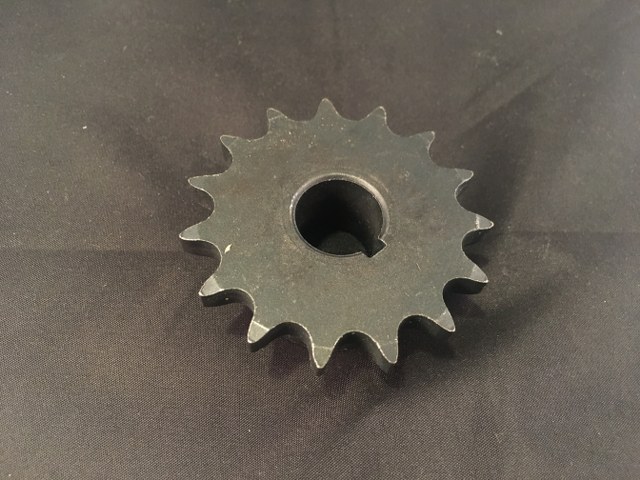

5006 | SPROCKET | |
| 163 |
|
5009 | ROD END | |
| 164 |
|

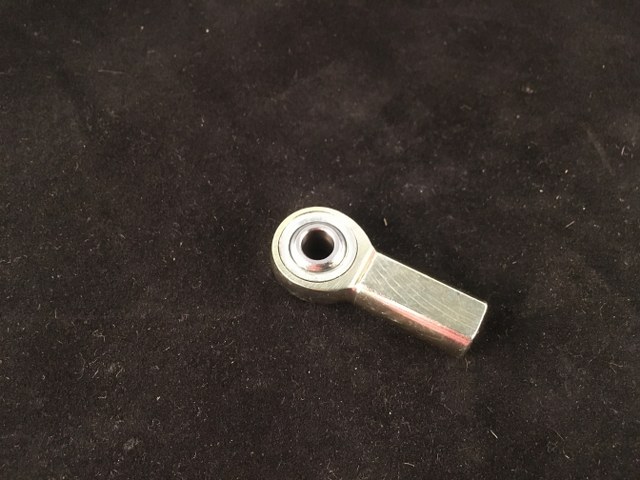

5010 | ROD END | |
| 165 |
|
5011 | ROD END | |
| 166 |
|
5012 | ROD END | |
| 167 |
|
5017 | SNAP RING | |
| 168 |
|
5022 | CYLINDER, AIR | |
| 169 |
|
5025 | CYLINDER, AIR | |
| 170 |
|
5026 | CYLINDER, AIR | |
| 171 |
|
5064 | REGULATOR FILTER ASS'Y | |
| 172 |
|
5067 | MOTOR, HYDRAULIC, WEBSTER | |
| 173 |
|
5097 | FITTING, BULK HEAD UNION | |
| 174 |
|
5098 | FITTING, BRASS | |
| 175 |
|
5099 | FITTING, BRASS | |

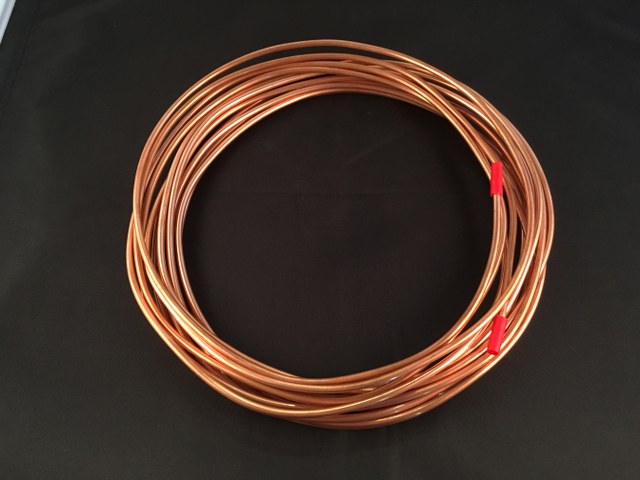

| 176 |
|
5119 | TUBING, COPPER 1/8 | |
| 177 |
|
5122 | SPROCKET, GREY CHAIN | |
| 178 |
|
5139 | VALVE, SOLENOID AIR | |
| 179 |
|
5140 | SPROCKET, MODIFIED | |
| 180 |
|
5141 | HUB | |
| 181 |
|
5173 | DAMPER | |
| 182 |
|
5209 | FITTING, BRASS | |
| 183 |
|
5293 | KNIFE PIVOT JS813 | |
| 184 |
|
5298 | JS389 SPRING | |
| 185 |
|
5355 | PLATE, KNIFE RETAINING | |
| 186 |
|
5361 | MOD 2 CUTTER HEAD | |

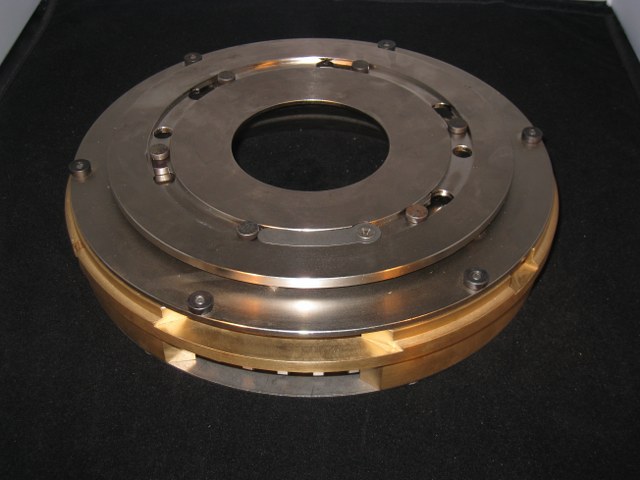

| 187 |
|
5362 | MOD 3 CUTTER HEAD | |
| 188 |
|
5372 | CUTTER HEAD GEAR JS458 | |
| 189 |
|
5374 | LOCK SPRING | |

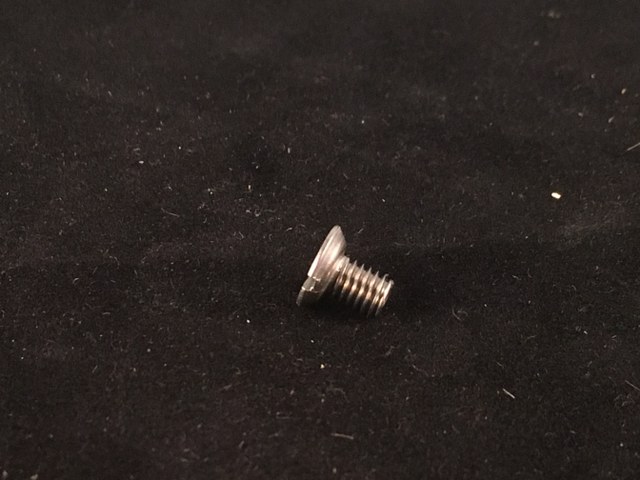

| 190 |
|
5388 | FHMS BRASS 10-32 X 5/16 | |
| 191 |
|
5389 | KNIFE STUD JS339 | |
| 192 |
|
5390 | SHCS 6-32 X 5/16 | |
| 193 |
|
5391 | ADJUSTING FINGER/JS459 | |
| 194 |
|

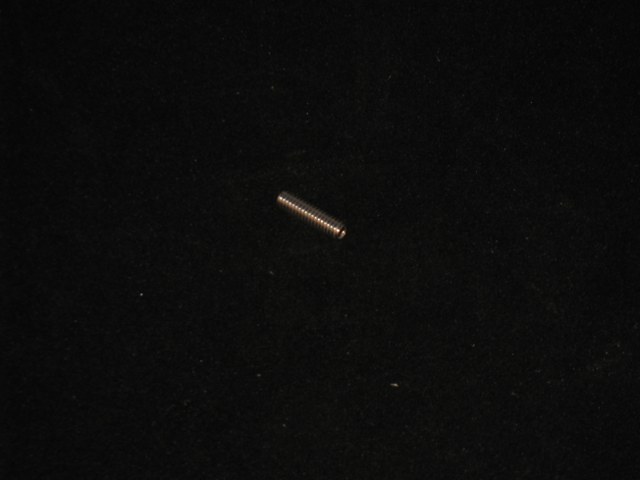

5392 | SSS STL 8-32 X 5/8 | |
| 195 |
|
5394 | SSS SS 12-24 X11/16 | |
| 196 |
|
5395 | PHMS SL SS 12-24 X 1 | |
| 197 |
|
5396 | STUD, CUTTER HEAD GEAR 5396 | |
| 198 |
|
5397 | FHMS 8-32 X 3/16 | |
| 199 |
|
5423 | KEY WOODRUFF 1/4 X 1 | |
| 200 |
|
5425 | CUTTER HEAD GEAR JS817 | |
| 201 |
|
5426 | ACTUATING GEAR JS789 | |
| 202 |
|
5427 | KNIFE ACT RING JS788 | |
| 203 |
|
5428 | STUD, KNIFE JS589 | |
| 204 |
|
5441 | OUTER RING | |
| 205 |
|
5443 | KNIFE ANCHOR JS816 | |
| 206 |
|
5449 | SHCS 1/4-28X5/8 | |
| 207 |
|
5451 | PIN STOP | |
| 208 |
|
5452 | BEARING, FRONT HALF JS72A | |
| 209 |
|
5453 | BEARING, REAR HALF JS-74 | |
| 210 |
|
5486 | HUB, SHEAVE | |
| 211 |
|
5499 | BEARING INSERT | |
| 212 |
|
5500 | TENSION SETTING GEAR JS1000 | |
| 213 |
|
5501 | RING EQUAL. JS457 | |
| 214 |
|
5517 | STEEL BALL | |
| 215 |
|
5519 | VALVE REPAIR KIT (P/N 5139) | |
| 216 |
|
5526 | WASHER | |
| 217 |
|
5527 | WASHER | |
| 218 |
|
5534 | FRESNEL LENS | |
| 219 |
|
5606 | RING TENSION JS454 | |
| 220 |
|
5635 | V-BELT | |
| 221 |
|
5637-01 | MOTOR, HYDRAULIC | |
| 222 |
|
5638-01 | MOTOR, HYDRAULIC | |
| 223 |
|
5639-01 | MOTOR, HYDRAULIC | |
| 224 |
|
5640-01 | MOTOR, HYDRAULIC | |
| 225 |
|
5666 | VALVE, HYD. FLOW CONTROL 3.5 | |
| 226 |
|
5671 | VALVE, SPEED CONTROL | |
| 227 |
|
5793 | HHCS SS 3/8-16 X 3/4 | |
| 228 |
|
5824 | SHCS 6-32X3/8 | |
| 229 |
|
5827 | SHCS SS 1/4-20 X 2 3/4 | |
| 230 |
|
5829 | FHMS SO SS 1/4-20 X 1/2 | |
| 231 |
|
5841 | FHMS SS 5/16-18 X 3/4 | |
| 232 |
|
5844 | NUT HEX JAM SS 3/8-16 | |
| 233 |
|
5865 | HHCS SS 5/16-18 X 3/4 | |
| 234 |
|
5880 | 3/8"-16 COARSE THREAD 1-1/2" | |
| 235 |
|
5945 | SSS STL 5/16-18X3/8 | |
| 236 |
|
5949 | SSS STL. 3/8-24 X 1/4 | |
| 237 |
|
5950 | SSS STL. 3/8-24 X 3/8 | |
| 238 |
|
5997 | 1/4-20X1/2 HHS/S | |
| 239 |
|
5999 | 1/4"-20 COARSE THREAD 3/4" | |
| 240 |
|
6001 | SHCS SS 1/4 - 20 X 2 | |
| 241 |
|
6002 | HHCS SS 1/4-20 x 2 1/2 | |
| 242 |
|
6007 | 5/16-18X11/2 FHSCSS/S | |
| 243 |
|
6008 | SHCS 5/16-18 X 3/4 | |
| 244 |
|
6009 | SSS STL 5/16-18X1/4 | |
| 245 |
|
6011 | NUT HEX NYLOCK SS 3/8-16 | |
| 246 |
|
6015 | SHCS SS 3/8-16X1 1/2 | |
| 247 |
|
6290 | PIN, MOLEX 22-18 GA | |
| 248 |
|
6358 | CONNECTOR LIGHT SOURCE | |
| 249 |
|
7759 | SOC HEAD CAP SCREW 10-32X1/2LG | |
| 250 |
|
7779 | PHMS SS 8 - 32 X 1/4 | |
| 251 |
|
7781 | FHMS 8-32 X 1/4 | |
| 252 |
|
8154 | DRIVE GEAR | |
| 253 |
|
8227 | SHEAVE 5.0 DIA. X 1 | |
| 254 |
|
8265 | PROXIMITY SWITCH | |
| 255 |
|
8279 | SPROCKET | |
| 256 |
|
8280 | CUTTER HEAD BEARING JS01 | |
| 257 |
|
8311 | BLOCK, 45 DEG PRESSURE ARM ADJ | |

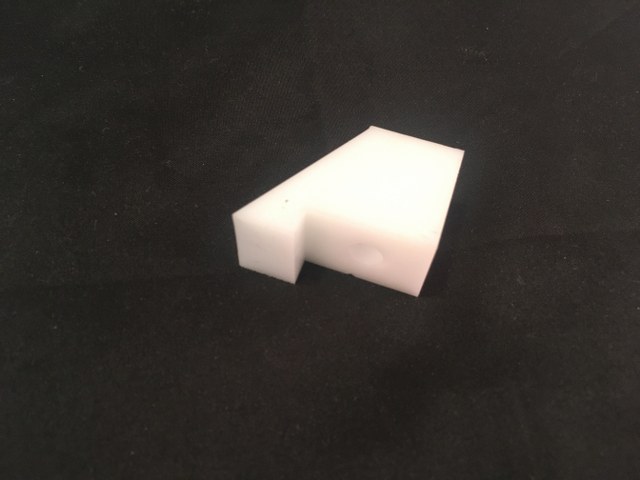

| 258 |
|
8312 | BLOCK, PRESSURE ARM SPACER | |
| 259 |
|
8313 | NUT, ADJUSTMENT (PRESSURE ARM) | |
| 260 |
|
8314 | PRESSURE ARM SUB ASSY | |
| 261 |
|
8320 | ROLLER SHAFT ASS'Y | |
| 262 |
|
8340 | BEARING, ROLLER | |
| 263 |
|
8359 | PRESSURE ARM WELDMENT | |
| 264 |
|
8549 | HALL EFFECTS | |
| 265 |
|
8571 | SHCS SS 10-32 X 3/4 | |
| 266 |
|
8599 | PROPORTIONAL VALVE (PARKER) | |
| 267 |
|
8697 | SHCS SS 10-32 X 1/4 | |
| 268 |
|
9038 | MOD 3 CUTTER HEAD SHELL | |
| 269 |
|
9146 | RHMS SS 8-32 X 1/4 | |
| 270 |
|
9147 | SS INT L/W #10 | |
| 271 |
|
H100283 | SHCS 1/4-28 X 5/8 | |
| 272 |
|
H100285 | S/S SHCS 1/4-20 X 7/8 | |
| 273 |
|
H100316 | SS SHCS 10-32 X .5 | |
| 274 |
|
H100317 | HHCS 10-32 X 5/8 | |
| 275 |
|
H100456 | 18-8 SS ROUND HD SLOTTED SCREW | |
| 276 |
|
H100535 | SS FHMS 8-32 X 1/4 | |
| 277 |
|
H100818 | SQHD 3/8 -16 X 2 1/2 | |
| 278 |
|
H101408 | PIN - TAPER 4 DIA X 1-1/4 | |
| 279 |
|
H102024 | HHCS 1/4-28 X 3/4 | |
| 280 |
|
JS00068A | UPPER ROLL BRG | |
| 281 |
|
JS00068B | LOWER ROLL BRG | |
| 282 |
|
JS00068G | UPPER ROLL BRG | |
| 283 |
|
JS00068H | LOWER ROLL BRG | |
| 284 |
|
JS00068J | UPPER ROLL BRG | |
| 285 |
|
JS00068K | LOWER ROLL BRG | |
| 286 |
|
JS00328c | FEED CHAIN | |
| 287 |
|
JS00425 | LOCK SPRING | |
| 288 |
|
JS00450 | WORM GEAR | |
| 289 |
|
JS00455 | EYE BOLT | |
| 290 |
|
JS00462 | Eyebolt shaft | |
| 291 |
|
JS00501A | LOCATING PIN FOR CUTTING HEAD | |
| 292 |
|
JS00507C | RUBBER FEED ROLL ASSY | |
| 293 |
|
JS00539E | KNIFE, MOD 2 | |
| 294 |
|
JS00589 | STUD, KNIFE JS589 | |
| 295 |
|
JS00601E | KNIFE, MOD 3 | |
| 296 |
|
JS00708A | LEVER CONNECTING | |
| 297 |
|
JS00730 | SEAL, GARLOCK | |
| 298 |
|
JS00944 | WEAR PLATE | |
| 299 |
|
JS00972 | PIN - DRIVE GEAR | |
| 300 |
|
JS00978 | STUD RIVET | |
| 301 |
|
JU00009 | WING NUT | |
| 302 |
|
KWJ404 | KEY, WOODRUFF 404 ST STL 1/8 | |
| 303 |
|
NQJ06218 | NUT,HEX-NYLOC JAM 5/8-18 T18-8 ST | |
| 304 |
|
P693787 | SEAL,TYPE/STYLE HM1 | |
| 305 |
|
P732854 | CONNECTOR, MALE 3/16T X 1/8NPT | |
| 306 |
|
P732855 | ELBOW, MALE 90DG 3/16 T X 1/8 NPT | |
| 307 |
|
P732856 | PLUG,1/8NPT SOCKET HEAD | |
| 308 |
|
P732857 | TUBING, NYLON 3/16OD X .039WALL | |
| 309 |
|
PVWW-34 | LSAY-CNNN BOSCH PUMP | |
| 310 |
|
SGCJ02520025 | SCREW,SET CUP PNT-SOC HD 1/4-20 | |
