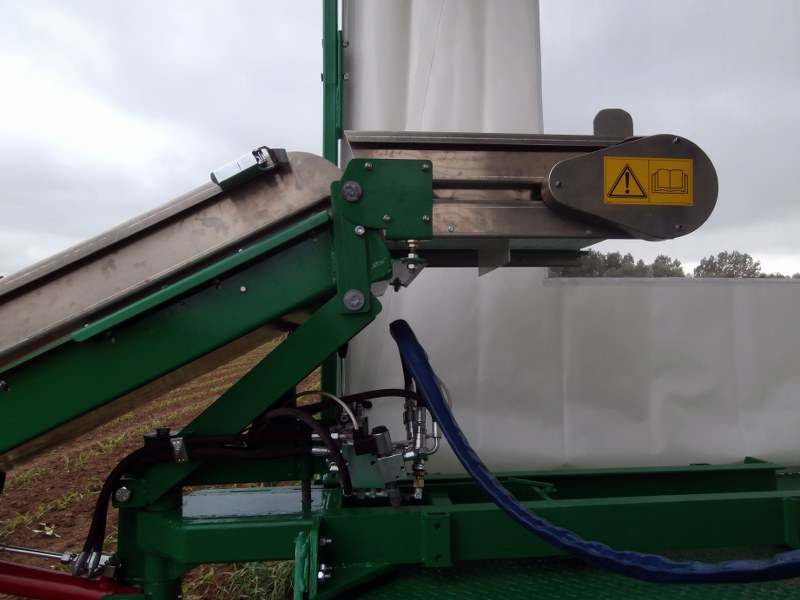

Harvesting belt side mount

The Delecroix harvest belt is attached to the side of a harvesting trailer and is available in the lengths 7,50 m, 9,00m and 10,00m. The belt is equipped with an Intralox belt to avoid slipping, stretch, and shrinkage.
The harvest belt van be easily set into transportation position by swinging the belt besides the trailer.

Request information

Specifications

Specifications:
- Harvest belt lengths: 7,50m, 9,00m or 10,00m
- Total belt width: 48cm
- Base frame folded sheet and steel profiles
- Aluminium belt chassis
- Hydraulic drive
- 4 sprocket belt drive
- Industrial polypropylene intralox belt width of 40cm
Cleats height of 65mm, pitch 300mm
- Variable speed control on distributor
- Belt stop with electronic sensor
- Lateral sliding rail

For more information about this machine, please refer to the brochure or contact us by clicking the "Request information" link above. You can also give us a call at: +31 (0) 165 315 536.
